Grid Monitoring Relay GMR100

INOTEL ELECTRIC

Grid Monitoring Relay GMR100

GMR series products of INOTEL brand are multifunctional network monitoring (Loss of Mains) relays positioned between the power grid and the power generation plant.

By continuously monitoring the city network, it separates the power plant and the power grid within milliseconds in case of any voltage or frequency disturbance that may occur and ensures that the power generation plant is restarted when the system returns to its nominal value.

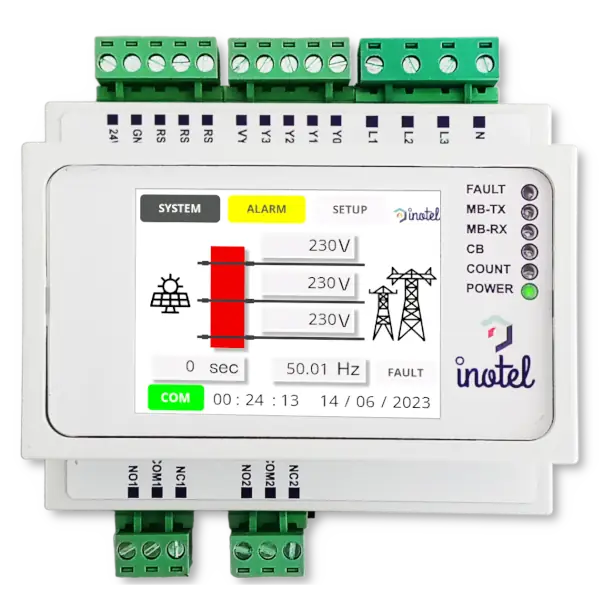

grid monitoring loss of mains relay

GENERAL

Protection Class : IP30
Mounting : DIN Rail
Supply Voltage : 18 - 36 Vdc

DIMENSIONS

Dimensions : 86 x 105 x 57 mm
Weight : 250 g

MEASUREMENT RANGE

(L1, L2, L3 - N) : 0 – 410 Vac
(L1, L2, L3) : 0 – 580 Vac
(L - N) : 0 – 410 Vac
Frekans : 40 – 60 Hz

CONNECTION INTERFACES

RS485 1 unit 2.5 kV
Relay Output 2 units 10A@230 V AC
Analog Measurement Input 1 unit,
3 phase-neutral voltage measurement

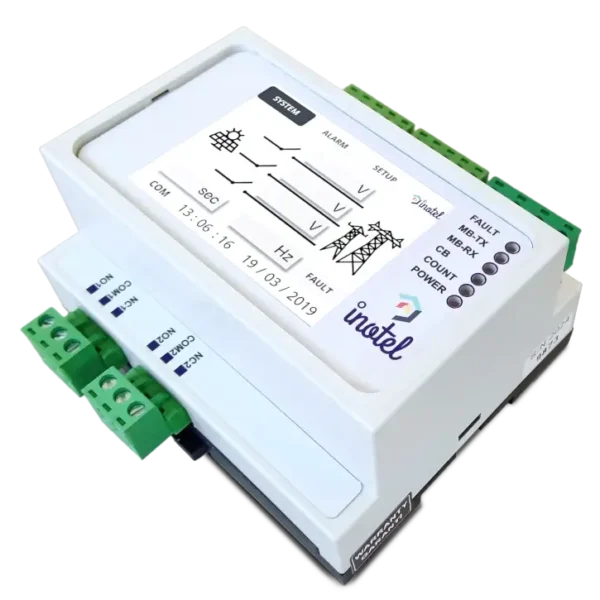

grid monitoring relay

HMI TOUCH PANEL AND LED INDICATORS

Display : 2.8" TFT-LCD touch panel
Menus : System, Alarm, Setup
LEDs : Power, communication, fault and status indicators

ENVIRONMENTAL CONDITIONS

Operating Temperature -20°C - +60°C
Storage Temperature -30°C - +80°C
Humidity Resistance 40°C, 93% RH

CERTIFICATIONS

Compliance Tests TS EN 61000-6-2:2019
TS EN 61000-6-4:2020
TS EN 50178:2003
TS EN 60255:2014
IEC 61010-1
G98,G99
VDE AR-N 4105:2018

APPLICATION AREAS

Industrial Facilities,
Hydroelectric Power Plants, Solar Power Plants, Wind Power Plants

bureau veritas group

GMR100 is certified by Bureau Veritas!

All protection functions of GMR100 were successfully type tested at Bureau Veritas laboratories in Germany according to international standards.

Turkish Patent and Trademark Office Registration
2 UTILITY MODEL REGISTRATIONS FOR GMR100

Technology Inside GMR100 is Now Protected

Two distinct technologies developed by Inotel and implemented in our GMR100 Grid Protection Relay have been granted utility model registrations.

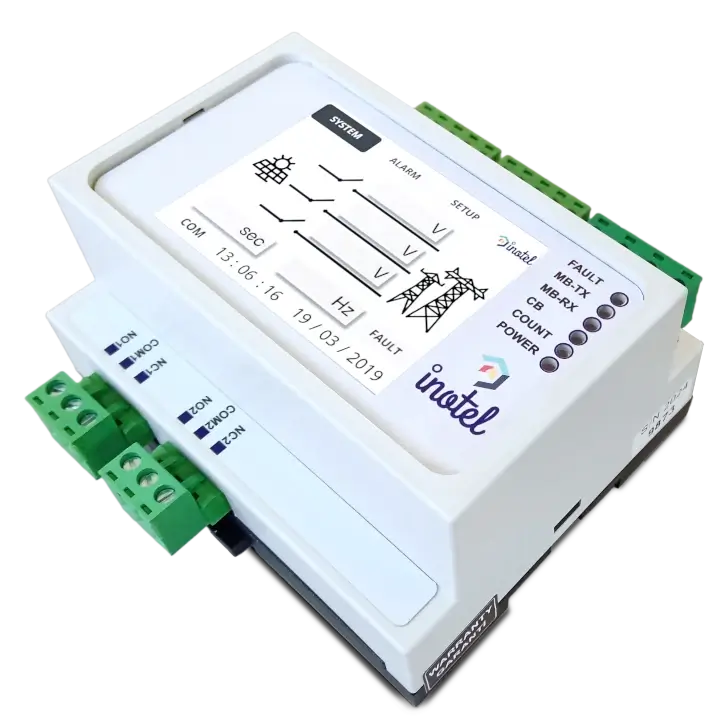

Inotel GMR100 Grid Protection Relay

These registrations, granted by the Turkish Patent and Trademark Office, reflect Inotel’s core approach: focusing on developing advanced engineering and R&D-driven protection technologies rather than just manufacturing.

Original Protection Technologies

The advanced grid monitoring and protection technologies within the GMR100 are designed to respond rapidly and reliably to critical voltage and frequency scenarios in modern power systems.

Renewable Energy Integration

In an era of distributed generation and expanding Solar Power Plants (SPP), GMR100 provides engineering solutions specifically developed for grid stability and renewable energy integration.

Engineering developed in Türkiye — designed for global power systems.
