RAG110

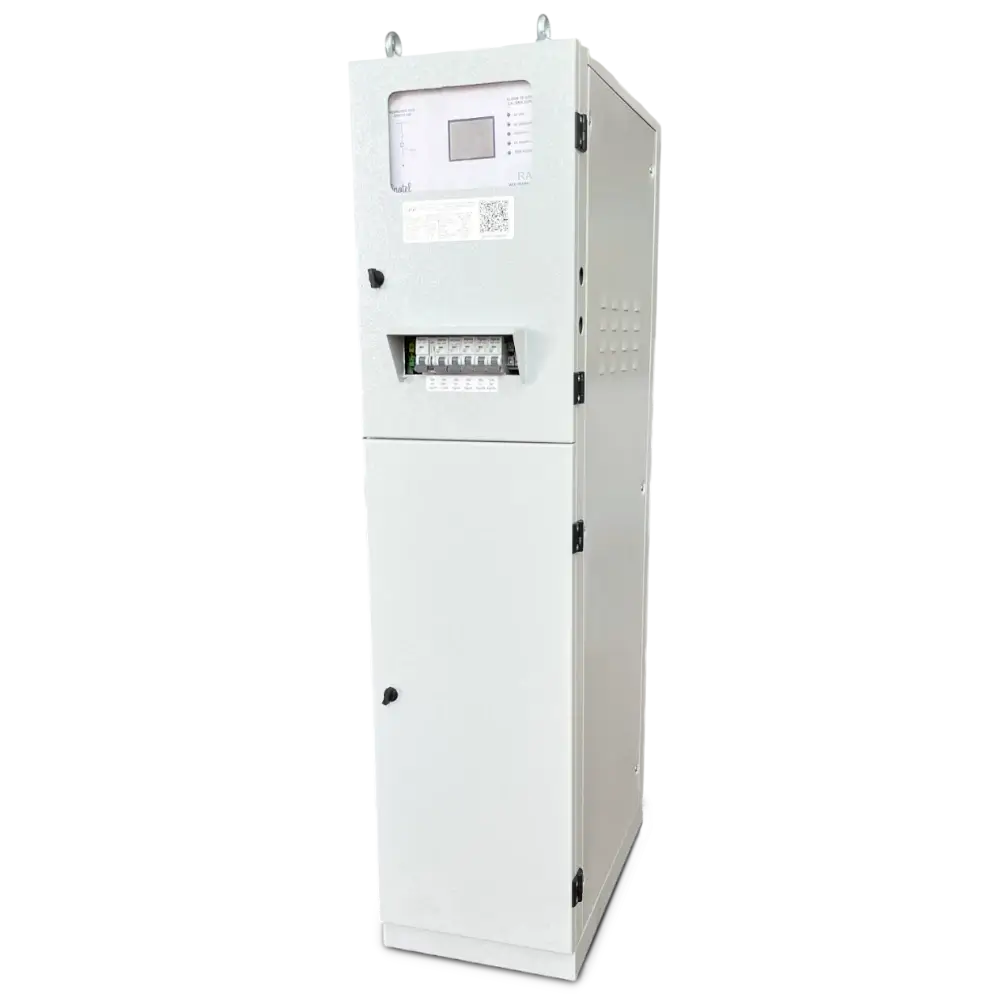

RAG110 Rectifier Current Converter
Inotel RAG110 series rectifier is a power supply, charging equipment specially designed for industrial systems. It minimizes the fluctuations that occur while converting alternating current to direct current, helps you to establish high-performance systems with more stable electrical flow and achieve maximum efficiency.
Request a Quote
Get information and a quote for your application.
RAG110
Overview
INOTEL ELECTRIC RAG110 Rectifier Current Converter Inotel RAG110 series rectifier is a power supply, charging equipment specially designed for industrial systems. It minimizes the fluctuations that occur while converting alternating current to direct current, helps you to establish high-performance systems with more stable electrical flow and achieve maximum efficiency. Catalogue
AREAS OF USE
Transformer Stations / Power Plants LV Distribution Panels / SCADA Systems Automation System / Industrial Facilities
RAG110
Technical Specifications
Electrical characteristics
| Specification | Value |
|---|---|
| Input voltage | 230 VAC ±20% |
| Output adjustment range | 90–125 VDC |
| Output current | 25 A |
| Output power | 3100 W |
| Input apparent power | 4750 VA |
| Input Current | 20 A |
| Battery Charge Current | 2,6 A |
| Power Factor | >0,8 |
| Efficiency | >75% |
General and construction
| Specification | Value |
|---|---|
| Weight | 146 kg |
| Operating temperature | −20…+55 °C |
| Protection Class | IP22 |
| Storage Temperature | −20…+55 °C |
| Cooling | Cebri / Forced air |
| Dimensions | 300 × 540 × 1240 mm |
Connections and indicators
| Specification | Value |
|---|---|
| Relay contact rating | 10 A / 277 VAC |
| Communication | RS485 / MODBUS |
| Relay Outputs | 16 SPDT (NO/NC) |
| Display | 2,8″ TFT-LCD; dokunmatik / touchscreen |
