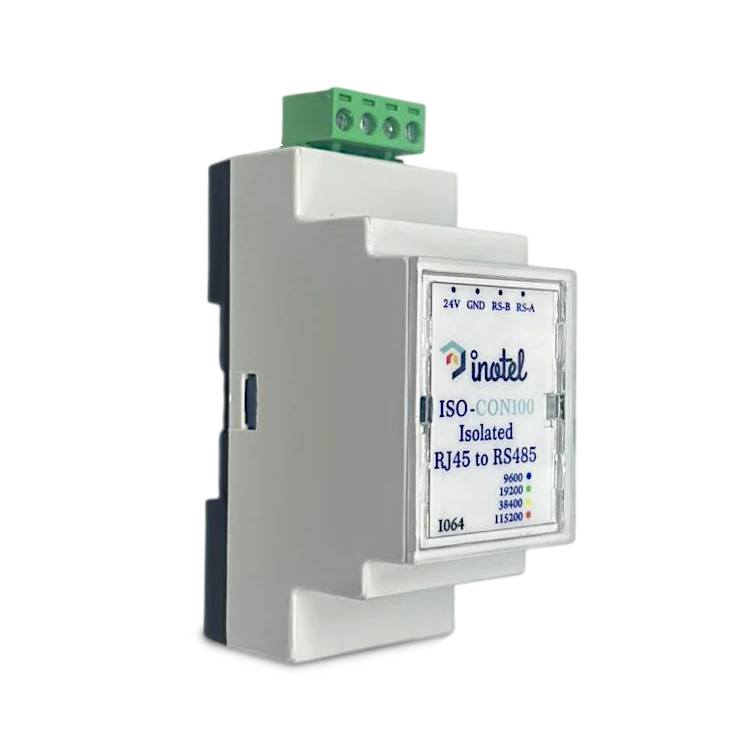

RJ45 – RS485 Converter ISO-CON100
ISO-CON100 is an innovative device designed for industrial automation and communication systems, providing RJ45 to RS485 conversion with 2.5 kV isolation protection. This device has been specially developed to protect sensitive communication and automation devices such as PLCs and RTUs from electrical fluctuations and surges as well as to ensure reliable operation. ISO-CON100 not only provides protection against electrical surges but also regulates the RS485 line.
Supply Voltage : 18 – 30 V DC
Power Consumption : 240 mW
Operating Temperature : -25°C...+70°C
Storage Temperature : -30°C...+70°C
Protection Class : IP30 & IK-07
Isolation : 2.5 kV
Height x Width x Depth : 86 x 36 x 59 mm
Weight : 60 g
Mounting : DIN Rail
Power Input : 1 Port
RS485 : 1 Port
RJ45 : 1 Port
Provides RJ45 - RS485 conversion with 2.5 kV isolation protection. It helps protect sensitive automation devices such as PLCs and RTUs against electrical fluctuations and sudden voltage surges.
Application : Isolated RS485 Conversion
Baud Rate : 9600, 19200, 38400, 115200
Communication : RJ45 (RS485) <--> RS485
RS485 Line Regulation
Industrial Facilities
Solar Power Plants
Hydroelectric Power Plants
Wind Power Plants
