INOTEL ELECTRIC

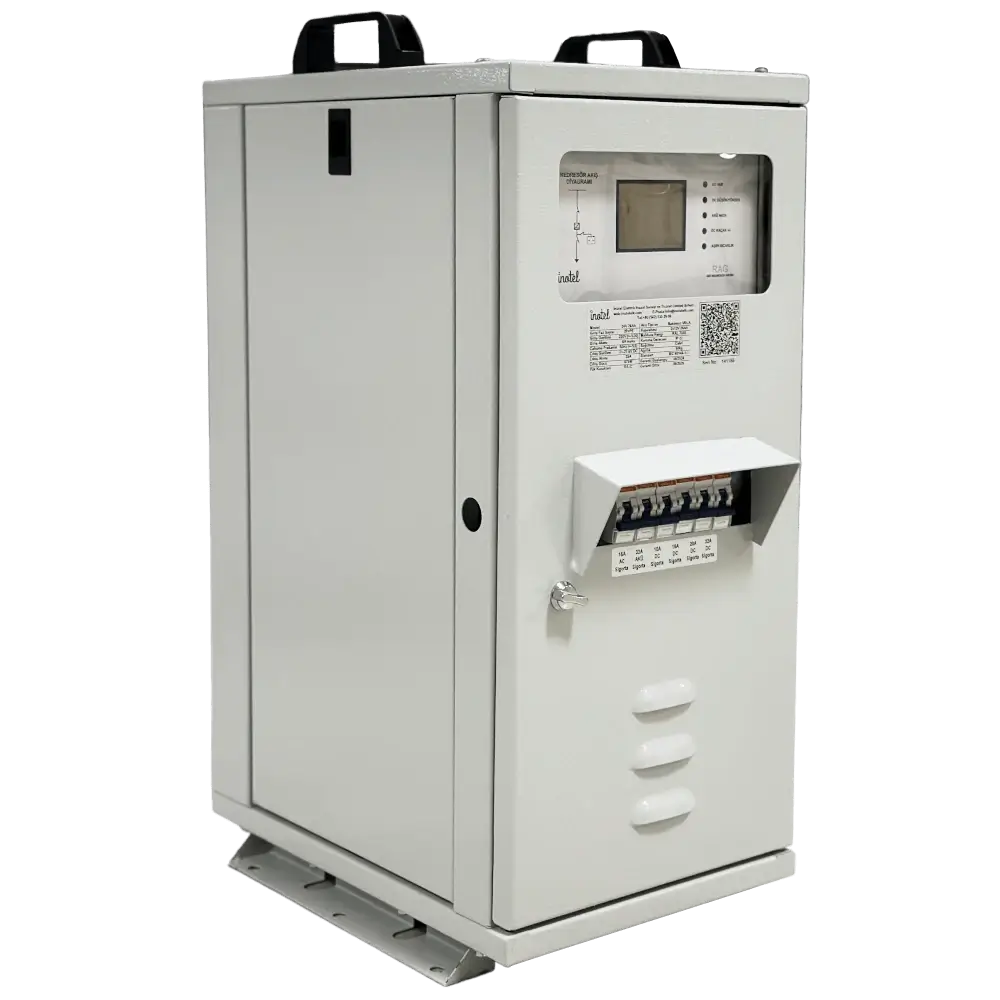

Battery Rectifier RAG24
İnotel RAG24 series rectifiers have been developed with innovative power electronics engineering techniques. In this way, RAG24 provides its users with;
• High efficiency
• Long lifespan
• Cost-effectiveness
• High stability
Operating Conditions
Temp : -20°C...+55°C
Humidity : %95 (Non-condensing)
Protection : IP22 / Fan Cooling
Certification : TEDAŞ-MLZ/2018-065.A
Physical Specifications
Dimensions : 290 x 390 x 620 mm
Weight : 52 kg
Communication & Relay
Comm : 1x RS485 (MODBUS)
Relay : 16x SPDT (NO/NC)
Relay Capacity : 5A 30Vdc / 10A 277Vac
Supply : 230 Vac (+/- 20%)
Output : 21-27.6 Vdc / 25 A
Power : 675 W / 1.125 VA
Efficiency : >75% (PF: >0.8)
Battery Charge : 2.6 A
2.8" TFT-LCD Touch Panel
Soft Start / Current Limiting
Deep Discharge Protection
Battery Maintenance Programs
Independent Current Adj.
Transformer & Power Plants
SCADA & Automation Systems
LV Distribution & Industrial Facilities
