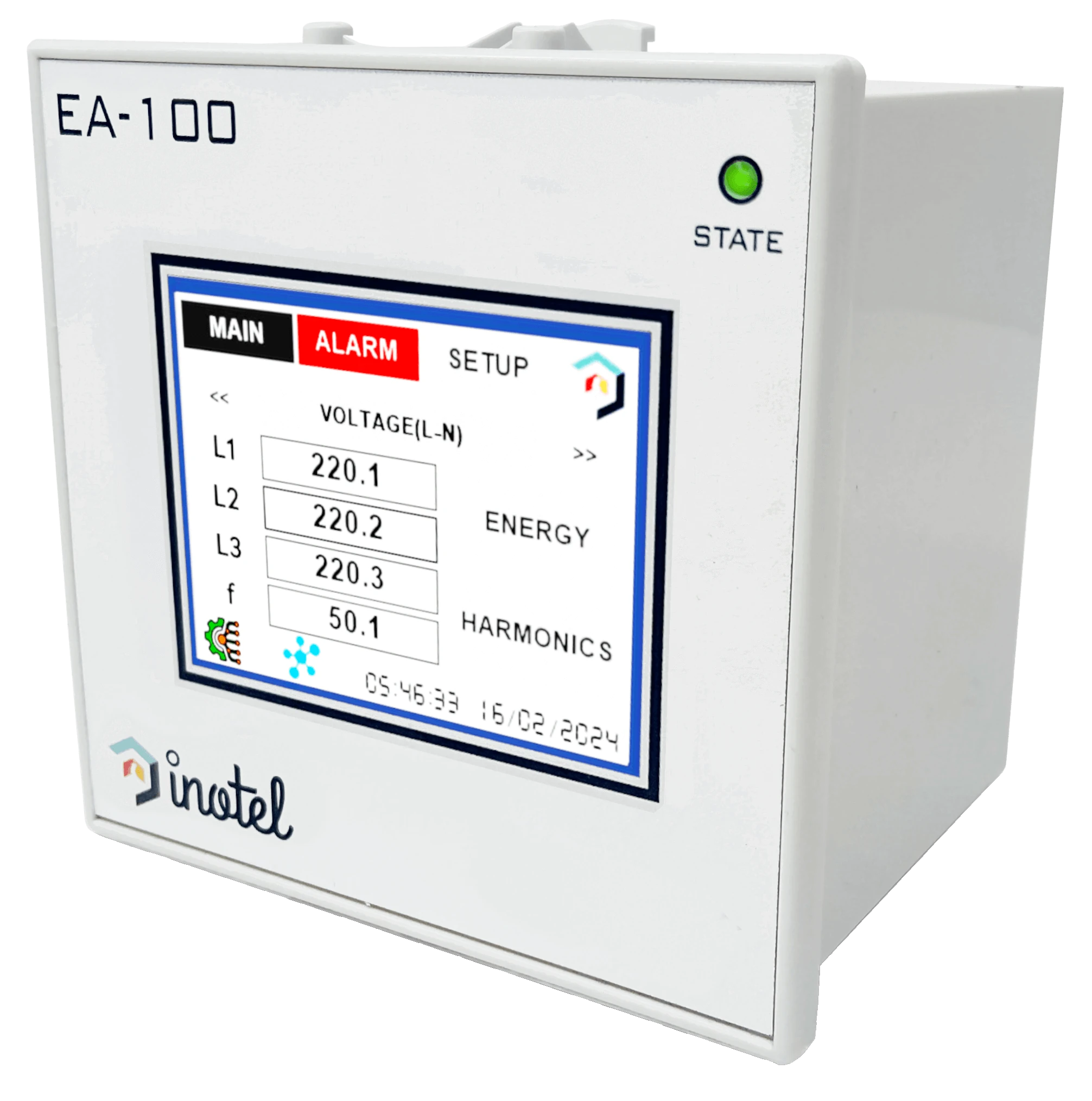

Energy Analyzer With Ethernet EA100E
The EA-100E is a microprocessor-controlled energy analyzer designed to measure energy, voltage, current, and instantaneous power changes, as well as current and voltage harmonics. It features a touch screen for easy operation, provides precise measurements, and includes both an Ethernet port and a Modbus communication port for data transfer to SCADA systems/RTUs.
EA-100E WITH ETHERNET AND MODBUS PORTS
The EA-100E Energy Analyzer is an ideal product for users who need both MODBUS (RS485) and ETHERNET ports for data transfer using the TCP/IP protocol from İnotel branded energy measurement devices. It enables the transfer of both the energy analysis and the analyzed data to SCADA/RTU systems through these output ports. This makes it perfect for users who prefer Ethernet communication or MODBUS communication for this process. If you do not wish to transfer the energy analysis to any system, you can explore the more economic product via the link below.
Here is the version without TCP/IP connection:
Supply: 85 - 264 VAC (≤8.8VA)
Accuracy: 0.5% | Freq: 40-60Hz
L-N: 30-270 VAC / L-L: 30-500 VAC
Harmonics: Up to 31st (Odd numbers)
Protection: IP30 & IK-07 | Panel Type
Safety: EN 61010-1
EMC: EN 61000-4-3
Industrial: EN ISC 61326-1
Emission: EN 55011
H x W x D: 96 x 96 x 72 mm
Weight: 325 gr
Operating Temp: -25°C...+70°C
Storage Temp: -30°C...+70°C
Analog: 3xIn, 3xPhase, 1xNeutral
EA100E: RS485 + TCP/IP (Ethernet)
Digital: 2 Inputs (Opt) / 2 Outputs
Display: 2.8” TFT-LCD Touch
Monitoring: 33 data types per phase
Logs: RTC + 15 Event/Alarm memory
Data: Harmonics, U, I, P, Energy
Solar & Wind Power Plants
Industrial Facilities & Factories
Hydroelectric Power Plants
SCADA & Energy Monitoring Systems
